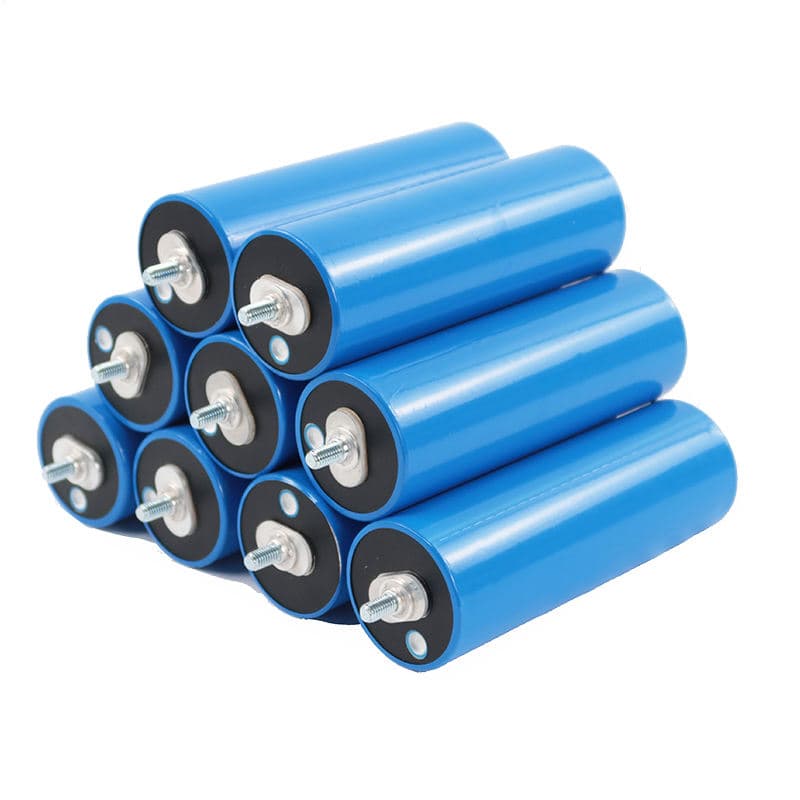

EVE C46P LiFePO4 3.2V 28Ah Cell
Category: Cells
Only 4 leftLimited stock - order soon.
Description
The EVE C46P-V3.1.1 is a large-format 46140 cylindrical LFP battery cell that delivers a minimum capacity of 28.5 Ah (88.7 Wh) within a standard 2.5V to 3.65V operating window. Weighing 533.6 g, with a supportive maximum pulse discharge current of up to 6C. Standard cycle life of 4,000 cycles.
Card price4,250 LKR
4,250 LKR × 1 unit · delivery paid to the courier on arrival
Bank transfer price4,100 LKR
Island-wide delivery, paid to the courier on arrival. Unused items can be returned within 7 days (return policy, warranty terms).
EVE C46P LiFePO4 3.2V 28Ah Cell specifications
| Parameter | Specification |
|---|---|
| Model | C46P-V3.1 |
| Cell Type / Chemistry | Cylindrical LFP (Lithium Iron Phosphate) |
| Minimum Capacity | ≥ 28.5 Ah |
| Minimum Energy | ≥ 88.7 Wh |
| Operating Voltage Range | 2.5 V to 3.65 V (T > 0°C) / 2.0 V to 3.65 V (T ≤ 0°C) |
| Cycle Life | 4000 cycles (to ≥ 70% capacity retention @ 0.5C/1C, 25°C) |
| Weight | 533.6 g ± 6 g |
| Dimensions (Diameter x Height) | Ø 46.8 mm ± 0.2 mm x 142.0 mm ± 0.5 mm (Total height including terminals) |
| Initial Internal Resistance (ACR) | < 1.3 mΩ (at 1 kHz, 30% SOC) |
| Initial DCR | ≤ 3.5 mΩ (2C, 30s @ 25°C, 30% SOC) |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5 V (T > 0°C) / 2.0 V (T ≤ 0°C) |
| Standard Charge Current | 0.5C (14 A) |
| Standard Discharge Current | 1C (28 A) |
| Max. Continuous Charge Current | 3C (at <50% SOC, 25°C) |
| Max. Pulse Discharge Current | 6C (at 25°C) |
| Charging Temperature | -20°C ~ 55°C |
| Discharging Temperature | -35°C ~ 60°C |
