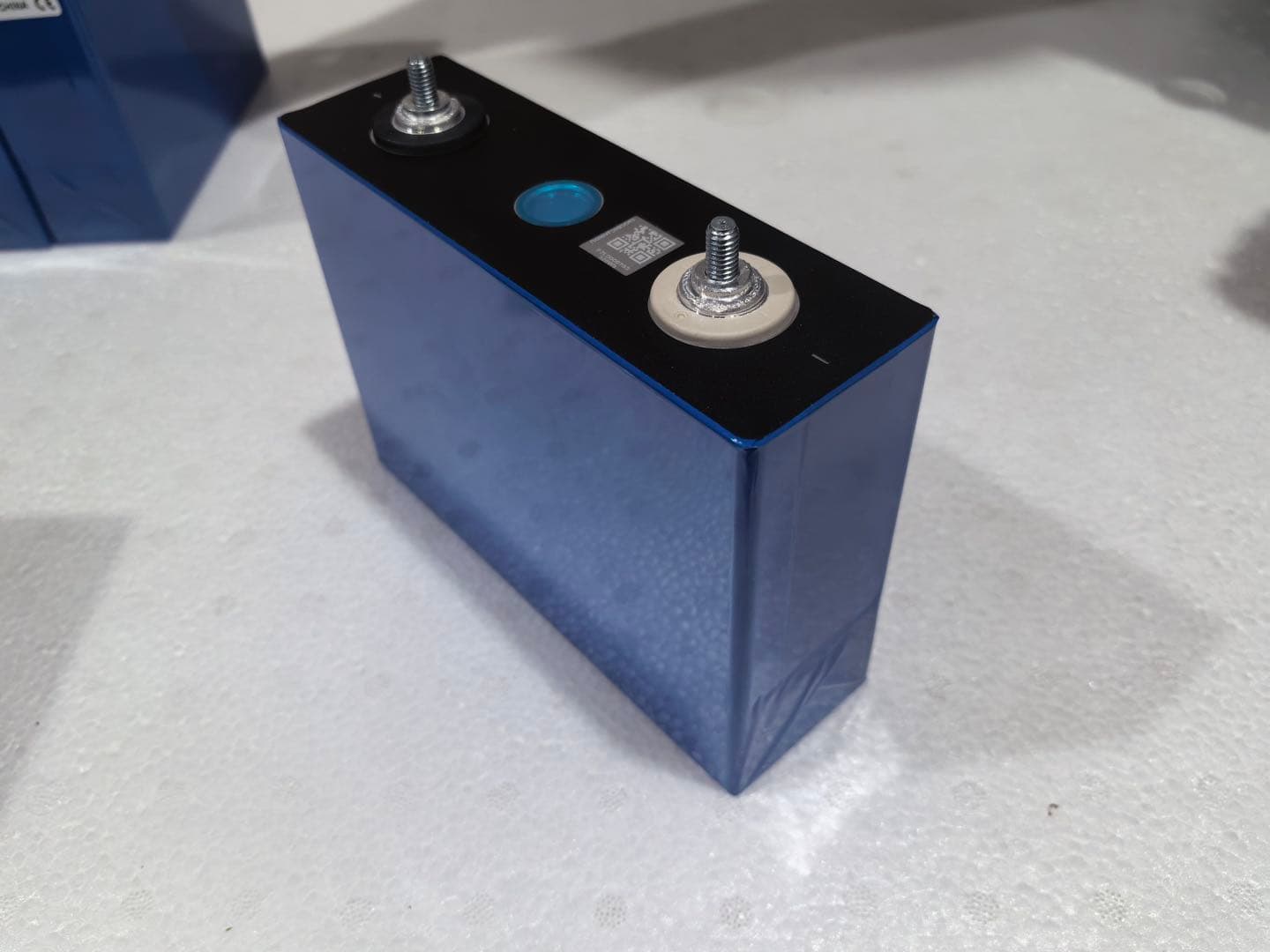

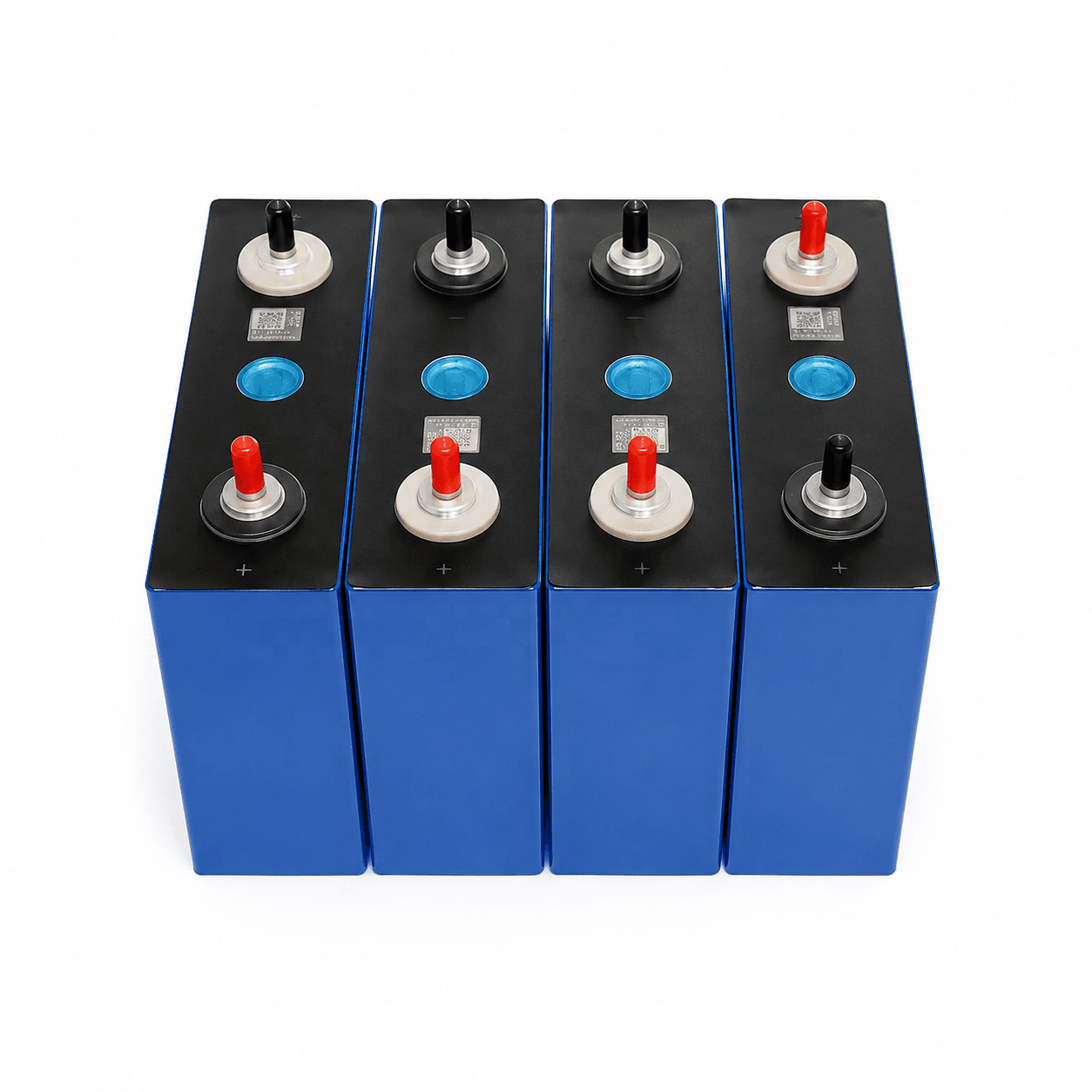

EVE 100Ah 3.2V LiFePO4 Cell
Category: Cells
Pre-Order
Description
Original EVE 100Ah A-grade LiFePO4 cell (LF100LA). Over 4,000 cycles, and the weight is around 1.98kg.
Select Warranty Period
Quantity
1
Total Price12,500 LKR
12,500 LKR × 1 unit · delivery quoted separately
EVE LF100LA 100Ah Prismatic LFP Cell
| Parameter | Specification |
|---|---|
| Model | LF100LA |
| Cell Type / Chemistry | Prismatic LFP (Lithium Iron Phosphate) with aluminum shell |
| Nominal Capacity | 100.0 Ah |
| Nominal Energy | 320 Wh |
| Nominal Voltage | 3.2 V |
| Cycle Life | >5000 cycles (to 80% capacity retention @ 0.5C/0.5C, 25°C, 200 kgf clamp) |
| Weight | 1.98 kg ± 0.05 kg |
| Dimensions (L x W x H) | 160.0 mm ± 0.5 mm x 50.1 mm ± 0.5 mm x 118.5 mm ± 0.5 mm (Total height including terminals) |
| Pole Center Distance (Tabs Distance) | 97.0 mm ± 0.3 mm |
| Initial Internal Resistance (ACR) | < 0.5 mΩ (1 kHz) |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5 V |
| Standard Charge Current | 0.5C (50 A) |
| Standard Discharge Current | 0.5C (50 A) |
| Max. Continuous Charge Current | 1C (100 A) |
| Max. Continuous Discharge Current | 1C (100 A) |
| Pulse Charge / Discharge Current (30s) | 2C / 2C (200 A) |
| Recommended SOC Range | 10% ~ 90% |
| Charging Temperature | 0°C ~ 55°C |
| Discharging Temperature | -20°C ~ 55°C |
