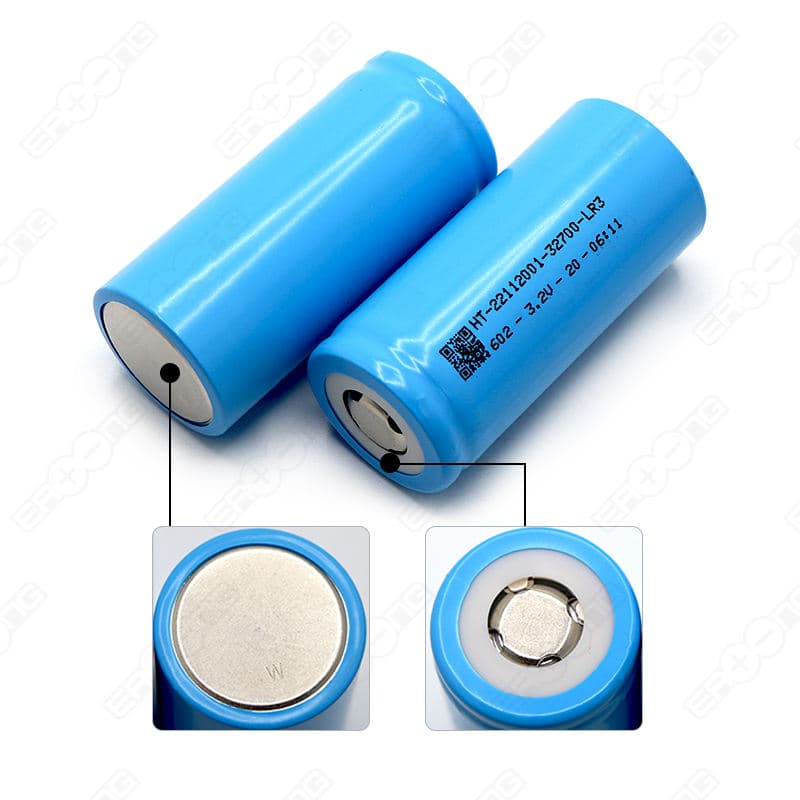

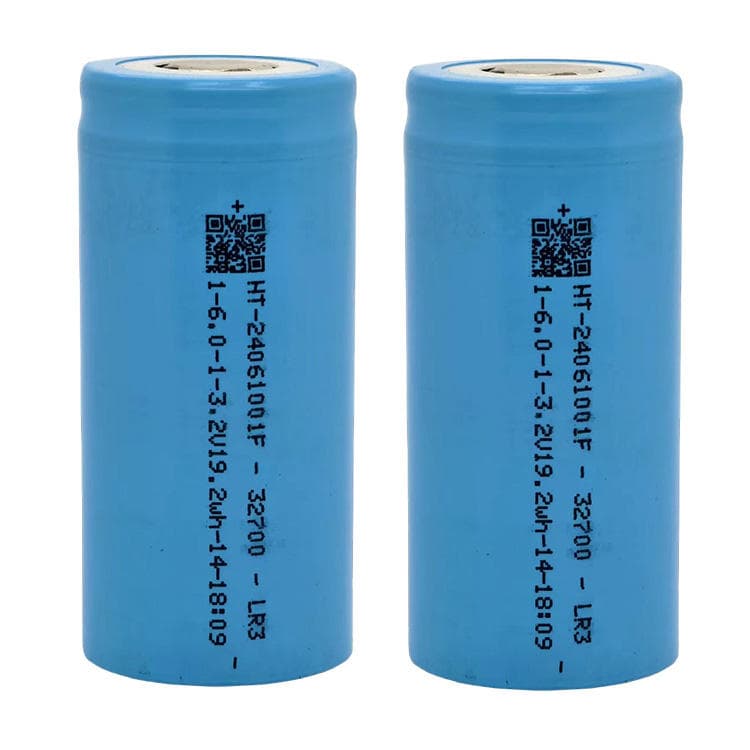

LiFePO4 3.2V 32700 Cell 6000mAh
Category: Cells
In Stock
Description
A high-capacity 32700 6.0Ah LiFePO4 cylindrical cell housed in a durable steel shell. Designed to deliver a long operational lifespan of over 2,000 cycles while weighing around 141g.
Quantity
1
Total Price1,100 LKR
1,100 LKR × 1 unit · delivery quoted separately
LiFePO4 32700-6.0Ah Cylindrical LFP Cell
| Parameter | Specification |
|---|---|
| Model | LiFePO4-32700-6.0Ah |
| Cell Type / Chemistry | Cylindrical Rechargeable Lithium-ion Cell (LiFePO4) |
| Nominal Capacity | 6.0 Ah (at 0.5C discharge) |
| Nominal Voltage | 3.2 V |
| Cycle Life | ≥ 2000 cycles (to ≥ 80% capacity retention at 0.5C/0.5C, 25°C) |
| Weight | 141 g ± 5 g |
| Dimensions (Diameter x Height) | Ø 32.35 mm ± 0.25 mm (coated) x 70.5 mm ± 0.3 mm |
| Initial Internal Resistance (AC) | < 8.0 mΩ (at 1000 Hz, 5% SOC) |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5 V (at 20°C ~ 45°C) / 2.0 V (at -20°C ~ 20°C) / 2.75 V (at 45°C ~ 60°C) |
| Standard Charge Current | 0.5C |
| Fast Charge Current | 1C |
| Standard Discharge Current | 0.5C |
| Max. Continuous Discharge Current | 18.0 A |
| Max. Pulse Discharge Current | 30.0 A (for 5s) |
| Charging Temperature | 0°C ~ 60°C |
| Discharging Temperature | -20°C ~ 60°C |
