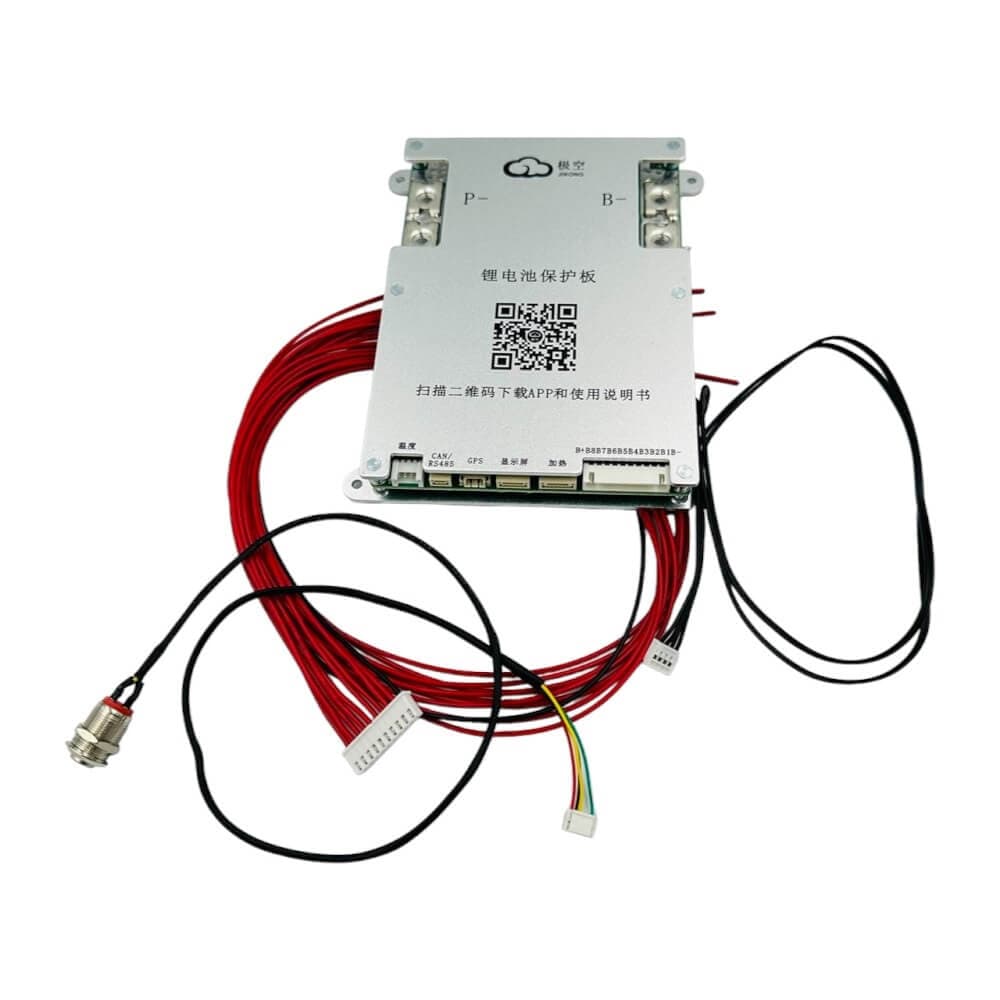

JK-BMS 4-8S Rated 200A Balance 1A
Category: BMS
Pre-Order
Description
Heavy-duty 200A-rated BMS with 400A max peak. Designed for 4S- 8S packs with 1A active balancing and Bluetooth. Compatible with Jikong’s power button and LCD accessories.
Quantity
1
Total Price12,500 LKR
12,500 LKR × 1 unit · delivery quoted separately
JK-B1A8S20P Smart BMS 4-8S Rated 200A Balance 1A
| Parameter | Specification |
|---|---|
| Model | JK-B1A8S20P |
| Product Type | Lithium Battery Active Balancing Protection Board (Smart BMS) |
| Supported Battery Chemistries | Li-ion (Ternary), LiFePO4 (LFP), Lithium Titanate (LTO) |
| Supported Series Count | 3S to 8S (for Li-ion and LFP) / 7S to 8S (for LTO) |
| Active Balancing Current | 1 A |
| Max. Continuous Charge Current | 200 A |
| Max. Continuous Discharge Current | 200 A |
| Max. Instantaneous Current | 400 A |
| Supply Voltage Range | 7.5 V ~ 36 V |
| Communication & Interfaces | Bluetooth (Standard), UART (Standard), RS485/CAN (Optional) |
| Temperature Sensors (NTC) | 1 built-in, 2 external (standard) / up to 4 external (optional) |
| Operating Temperature Range | -30°C ~ 70°C |
| Additional Supported Features | Heating function (20A, optional), Battery parallel function (optional), GPS via UART |
| Dimensions (L x W x H) | 152.25 mm x 127.26 mm x 15.6 mm |
| Weight | 424 g |
