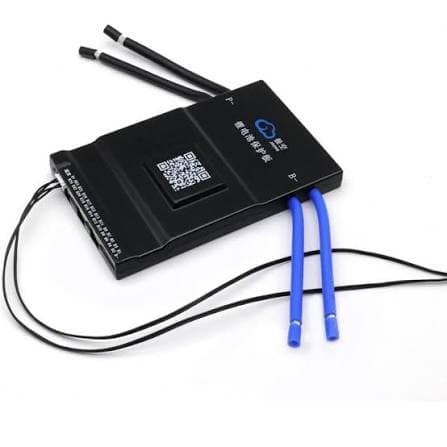

JK-BMS 8-20S Rated 100A Balance 0.6A
Category: BMS
Pre-Order
Description
Reliable 100A BMS (200A max) for 8S-20S configurations. Includes 0.6A active balancing, Bluetooth/App connectivity, and NTC. Includes an external power button for manual control.
Quantity
1
Total Price13,000 LKR
13,000 LKR × 1 unit · delivery quoted separately
JK BMS BD6A20S10P 8-20S Rated 100A Balance 0.6A
| Parameter | Specification |
|---|---|
| Model | JK-BD6A20S10P |
| Compatible Battery Types | LiFePO4 (8~20S) / Ternary Li-ion (7~20S) / LTO (14~20S) |
| Active Balance Current | 0.6A |
| Continuous Charge / Discharge Current | 100A |
| Maximum Instantaneous Current (Peak) | 200A |
| Internal Loop Resistance | ≤ 0.69 mΩ |
| Supply Voltage Range | 20V to 100V |
| Standard Interfaces | Bluetooth, UART, Display Port |
| Optional Expansions | CAN, RS485, Heating, Parallel, ACC detection, Alarm |
| Operating Temperature | -30°C to 70°C |
| Dimensions (L x W x H) | 162.0 mm x 102.0 mm x 20.4 mm |
| Weight | 567 g |
