JK-BMS Home ESS 8-16S Rated 100A Balance 1A
Category: BMS
In Stock
Description
The JK-PB1A16S10P is a specialized Energy Storage BMS engineered for 24V–48V home solar systems. It handles 100A of continuous current and utilizes 1A active balancing to maintain battery health. Standout features include built-in CAN and dual RS485 ports for direct inverter communication.
Quantity
1
Total Price22,000 LKR
22,000 LKR × 1 unit · delivery quoted separately

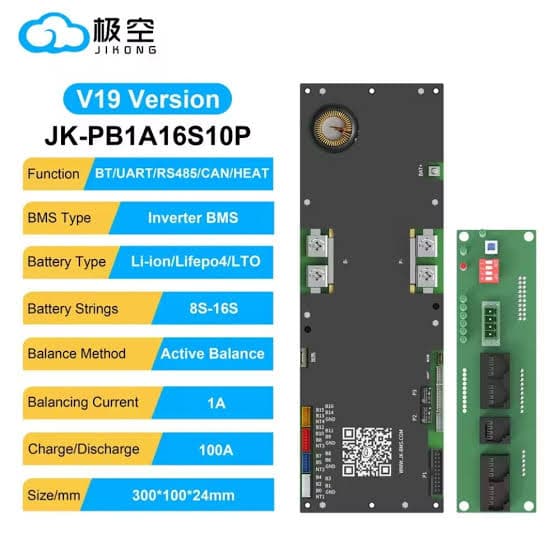

JK-PB1A16S10P Smart Energy Storage BMS
| Parameter | Specification |
|---|---|
| Model | JK-PB1A16S10P |
| Compatible Battery Types | LiFePO4 (8~16S) / Ternary Li-ion (7~16S) / LTO (14~16S) |
| Active Balance Current | 1A (Energy-transfer active balancing) |
| Continuous Charge / Discharge Current | 100A |
| Maximum Instantaneous Current (Peak) | 200A |
| Voltage Acquisition Accuracy | ±3mV |
| Internal Loop Resistance | 1 mΩ |
| Supply Voltage Range | 20V to 70V |
| Standard Interfaces | Bluetooth, CAN, dual RS485, Display port, 2-channel Dry Contacts, Heating |
| Parallel Pack Support | Supported via 10A current-limiting module & 4-bit DIP switch (0-15 addressing) |
| Operating Temperature | -30°C to 70°C |
| Dimensions (L x W x H) | 300.0 mm x 100.0 mm x 24.0 mm |
| Weight | 1000 g (1 kg) |
