Restocking SoonBMS
JK-BMS 3.2 LCD Screen
External displays are used to monitor the BMS data in real-time. 3.2 Inch LCD screen suitable for all Jikong BMS models.
4,150 LKRCash price 4,000 LKR
Image 1 of 4

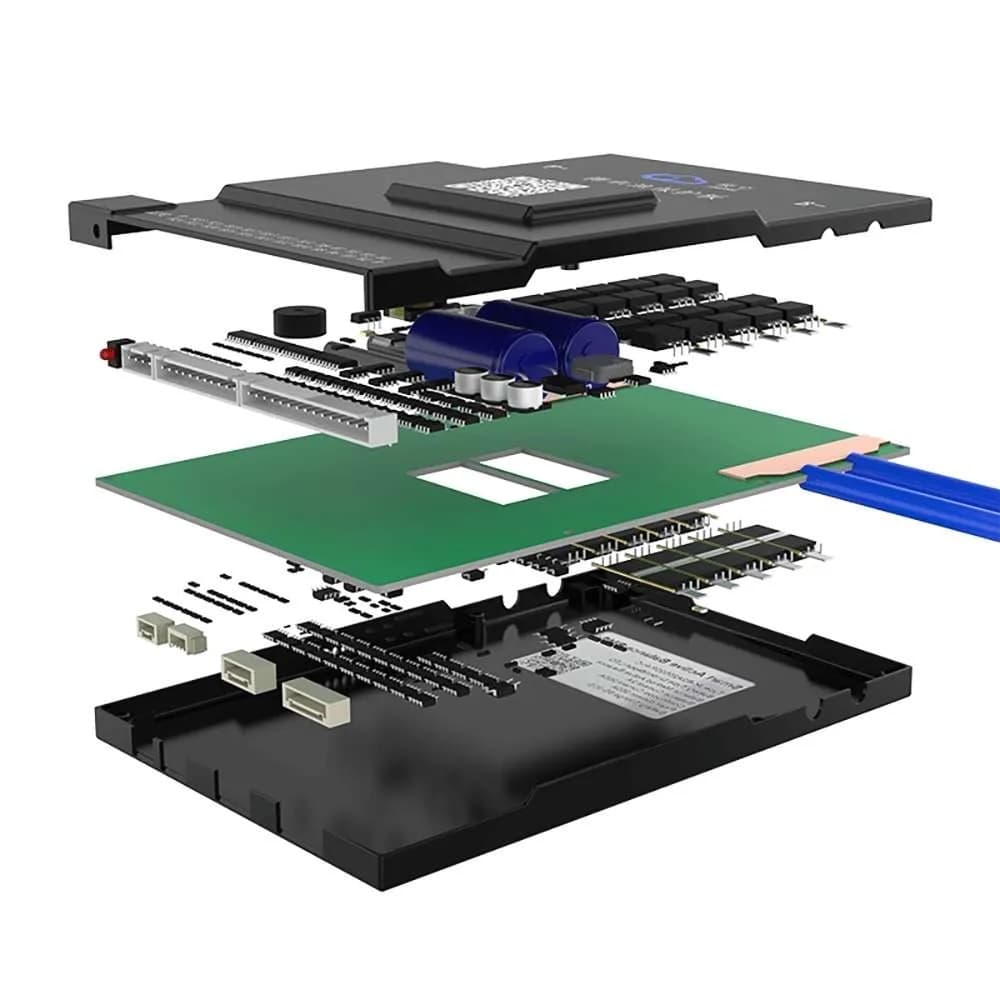

JK-BMS 8-20S Rated 150A Balance 1A
Category: BMS
Only 1 leftLimited stock - order soon.
Description
JK-B1A20S15P is an advanced 150A BMS with a 300A max peak. Provides 1A active balancing for 8S-20S batteries. Includes Bluetooth/App monitoring and contains an external power switch.
Card price19,400 LKR
19,400 LKR × 1 unit · delivery paid to the courier on arrival
Bank transfer price18,800 LKR
Island-wide delivery, paid to the courier on arrival. Unused items can be returned within 7 days (return policy, warranty terms).
JK-BMS 8-20S Rated 150A Balance 1A specifications
| Parameter | Specification |
|---|---|
| Model | JK-B1A20S15P |
| Compatible Battery Types | LiFePO4 (8~20S) / Ternary Li-ion (7~20S) / LTO (14~20S) |
| Active Balance Current | 1A (Energy-transfer active balancing) |
| Continuous Charge / Discharge Current | 150A |
| Maximum Instantaneous Current (Peak) | 300A |
| Voltage Acquisition Accuracy | ±3mV |
| Internal Loop Resistance | ≤ 0.365 mΩ |
| Supply Voltage Range | 20V to 100V |
| Standard Interfaces | Bluetooth, UART (GPS-ready), DisplayPort |
| Optional Expansions | CAN, RS485, 10A Heating port, ACC detection, Parallel module |
| Operating Temperature | -30°C to 70°C |
| Dimensions (L x W x H) | 162.0 mm x 102.0 mm x 20.4 mm |
| Weight | 560 g |
