JK-BMS 4-8S Rated 100A Balance 1A
Category: BMS
Pre-Order
Description

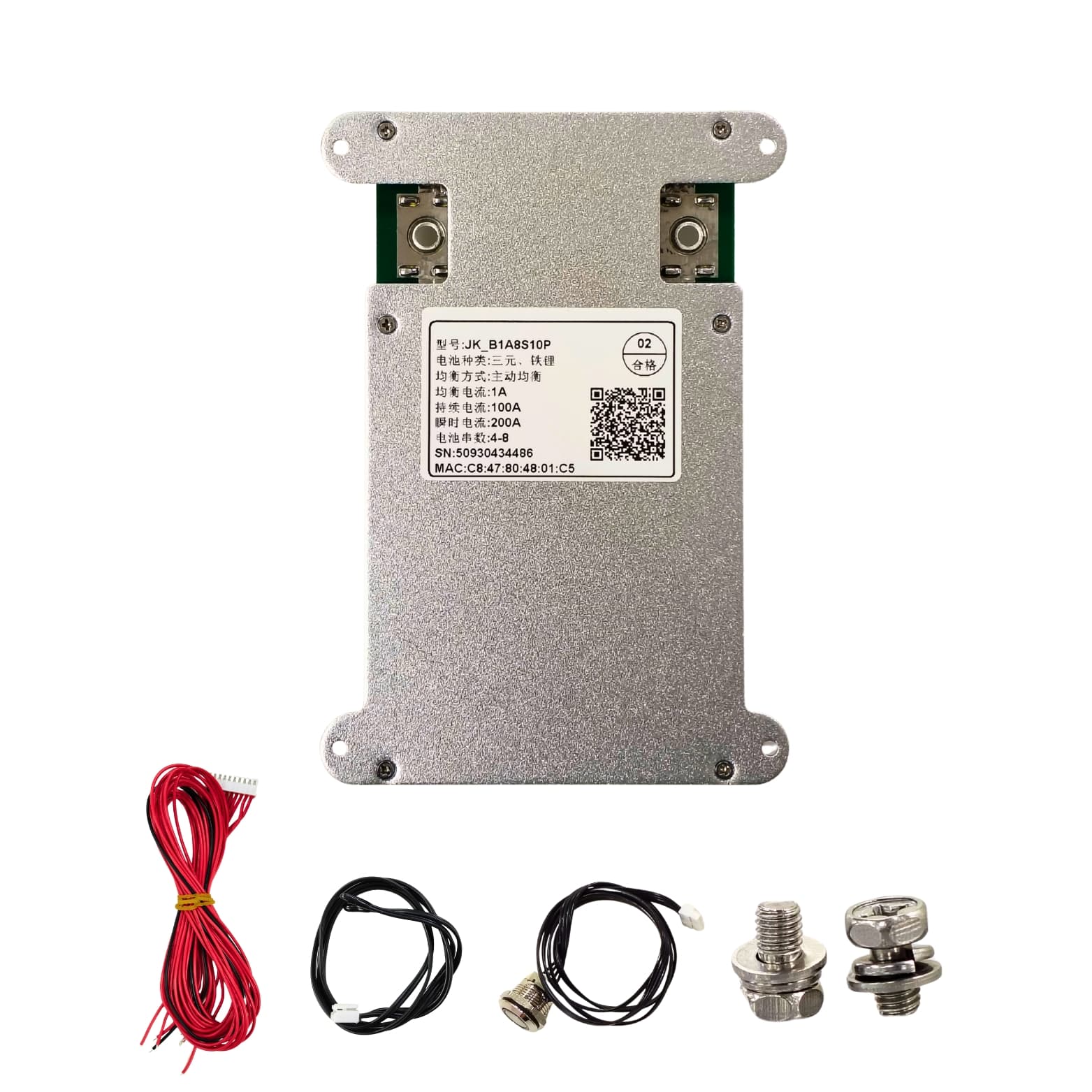

Compact 100A BMS (200A max) for 4S- 8S systems. Features a strong 1A active balancer, Bluetooth/App monitoring, and NTC. Includes an external power button for easy system activation.
Quantity
1
Total Price10,500 LKR
10,500 LKR × 1 unit · delivery quoted separately
JK-B1A8S10P 4-8S Rated 100A Balance 1A
| Parameter | Specification |
|---|---|
| Model | JK-B1A8S10P |
| Compatible Battery Types | Li-Ion (3~8S) / LiFePO4 (3~8S) / LTO (7~8S) |
| Active Balance Current | 1A |
| Continuous Charge / Discharge Current | 100A |
| Maximum Instantaneous Current (Peak) | 200A |
| Voltage Acquisition Accuracy | ±3mV |
| Single Cell Collection Range | 1V to 5V |
| Overcharge/Overdischarge Protection | 1.2V to 4.4V (Adjustable) |
| Power Requirements | 10V to 36V (Hardware limits: 7.5V to 36V) |
| Interfaces & Functions | Bluetooth (Standard)<br>CAN, RS485, Heating, Parallel (Optional) |
| Operating Temperature | -30°C to 70°C |
| Dimensions (L x W x H) | 153.9 mm x 107.0 mm x 17.6 mm |
| Weight | Approx. 260g (Up to 411g finished weight) |
