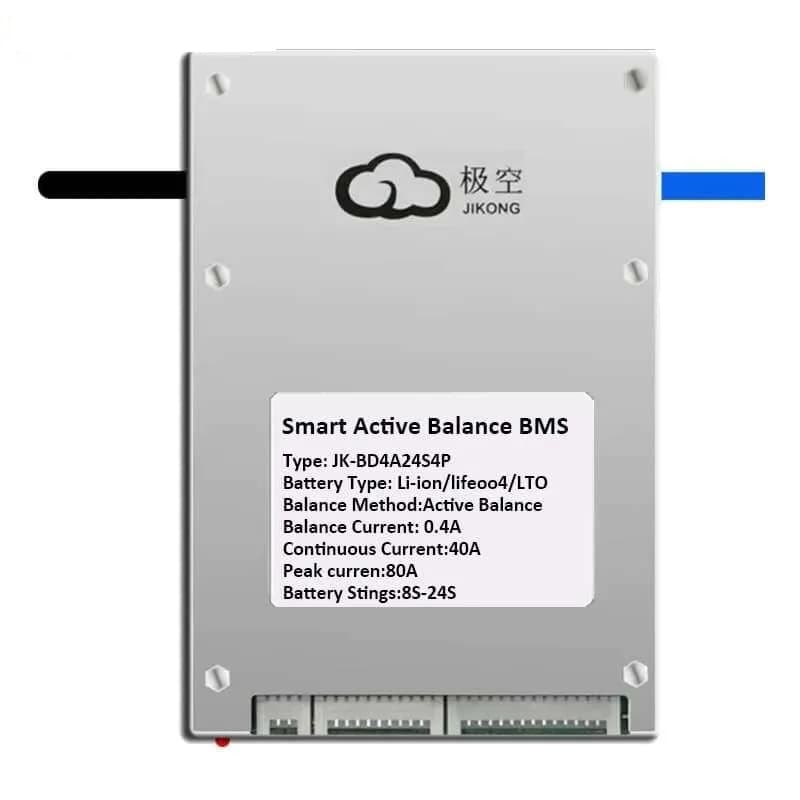

JK-BMS 8-24S Rated 40A Balancing 0.4A
Category: BMS
Pre-Order
Description
The JK-BD4A24S4P is an ultra-compact smart BMS supporting 7–24S battery configurations. Weighing only 205g, it delivers 40A continuous (80A peak) current with built-in 0.4A active balancing and ±3mV precision monitoring, making it an agile, space-saving solution for light e-mobility and mid-voltage packs.
Quantity
1
Total Price10,000 LKR
10,000 LKR × 1 unit · delivery quoted separately
JK-BD4A24S4P 8-24S Smart BMS Rated 40A Balancing 0.4A
| Parameter | Specification |
|---|---|
| Model | JK-BD4A24S-4P |
| Compatible Battery Types | LiFePO4 (8~24S) / Ternary Li-ion (7~24S) / LTO (14~24S) |
| Active Balance Current | 0.4A (Energy-transfer active balancing) |
| Continuous Charge / Discharge Current | 40A |
| Maximum Instantaneous Current (Peak) | 80A |
| Voltage Acquisition Accuracy | ±3mV |
| Internal Loop Resistance | ≤ 2.8 mΩ |
| Supply Voltage Range | 20V to 100V |
| Operating Power Consumption | < 800 mW |
| Standard Interfaces | Bluetooth, UART/GPS port, Display port |
| Optional Expansions | CAN, RS485, 10A Heating function, Alarm, Parallel function |
| Operating Temperature | -30°C to 70°C |
| Dimensions (L x W x H) | 116.0 mm x 103.0 mm x 17.6 mm |
| Weight | 205 g |
