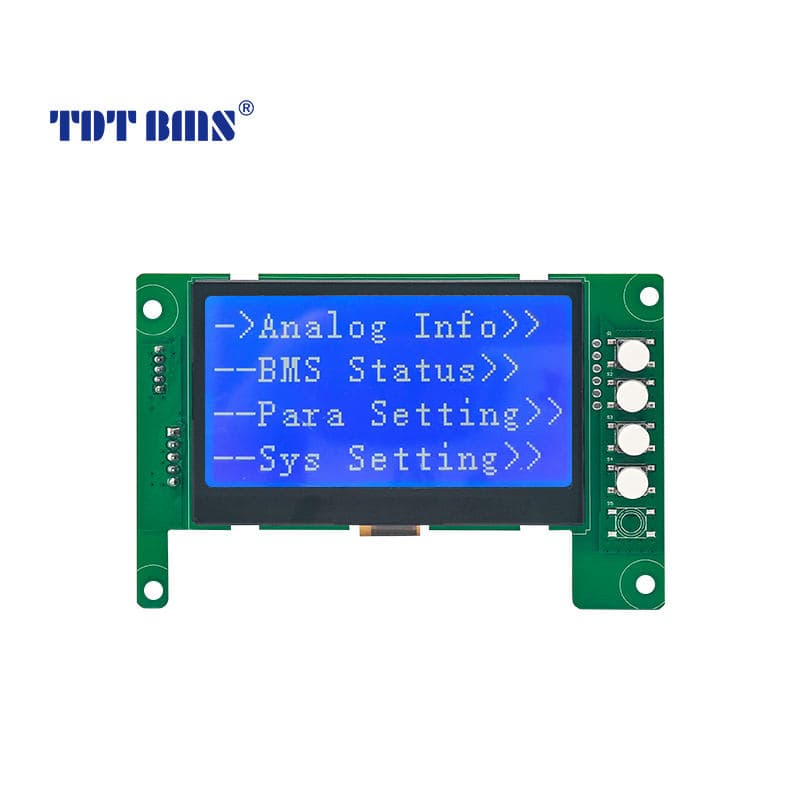

The TDT Key Screen LCD Display is a compact, easy-to-read screen that displays your battery's most critical data: voltage, current, power load, temperature extremes, and State of Charge (SOC).
Island-wide delivery, paid to the courier on arrival. Unused items can be returned within 7 days (return policy, warranty terms).
| Parameter | Specification |
|---|---|
| Product Type | BMS LCD Display (Key Screen) |
| Compatibility | TDT Smart BMS |
| Dimensions (L x W) | 105 mm x 66 mm |
| Control Interface | 4 Tactile Push Buttons (Menu, Enter, Down, Back) |
| Real-Time Data Displayed | Voltage (V), Current (A), Power (W), Min/Max Temperature (°C), State of Charge (SOC %) |
| Menu Navigation | Analog Info, BMS Status, Parameter Settings, System Settings |
| Display Style | High-contrast blue background with white text |
