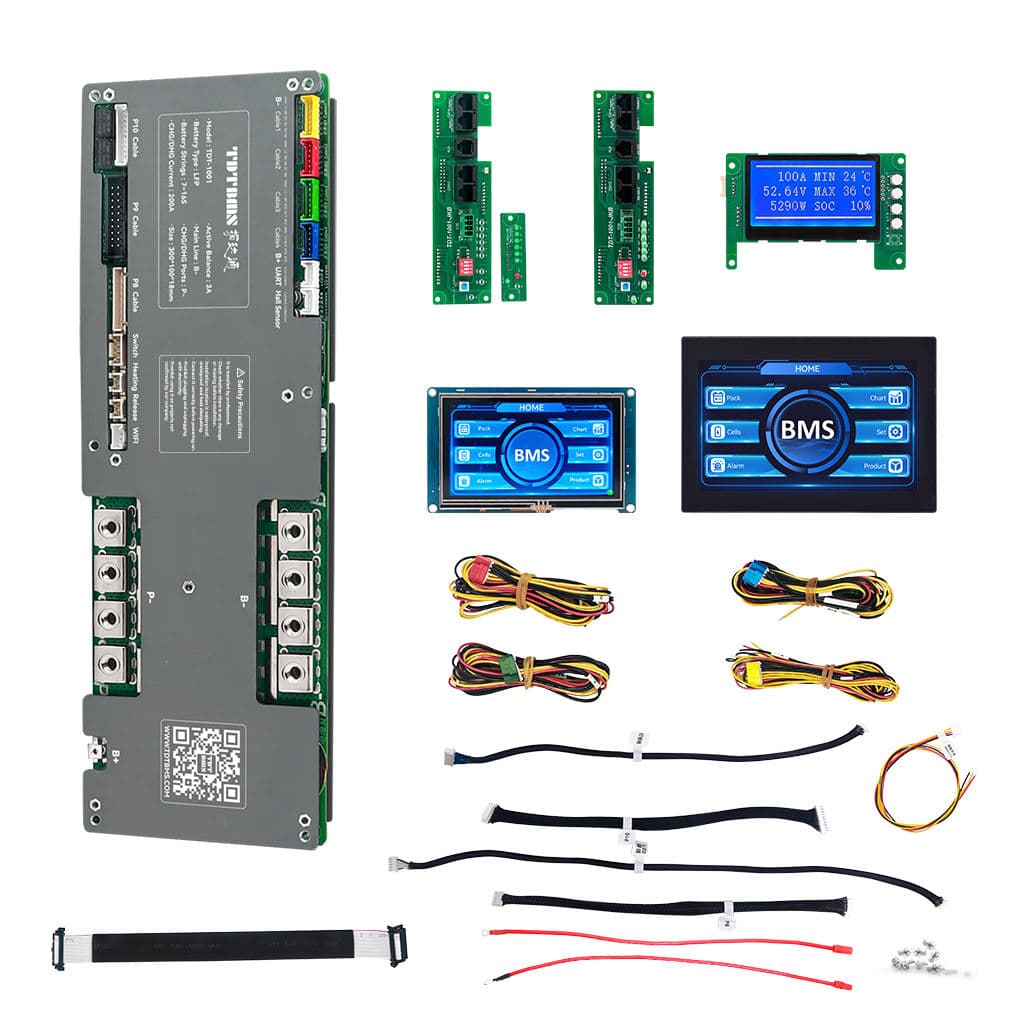

TDT-1001 Inverter BMS Home Energy Storage Series 7-16S Rated 150A Balance 3A with 4.3" Touch Display, and the Package Includes: BMS Board, Communication Interface, Power Button, Display (Optional Plastic Casing), and Wire Harness.
Island-wide delivery, paid to the courier on arrival. Unused items can be returned within 7 days (return policy, warranty terms).
| Parameter | Specification |
|---|---|
| Model | TDT-1001 |
| Supported Series | 7S to 16S |
| Supported Current Range | 50A to 300A (Covers 100A, 150A, 200A) |
| Battery Chemistry | Li-ion / LiFePO4 |
| Active Balancing | Built-in 3A active balance |
| Parallel Support | 10A parallel current limiting module (supports up to 20 battery groups in parallel) |
| Temperature Sensors | 6 Total (4 for battery pack, 1 for ambient environment, 1 for MOS) |
| Inverter Communication | (RS485/CAN) - PYLONTECH, GOODWE, Growatt, Victron Energy, etc. |
| Dimensions (L x W x H) | 300 mm x 100 mm x 18 mm |
| Weight | 1.095 kg |
