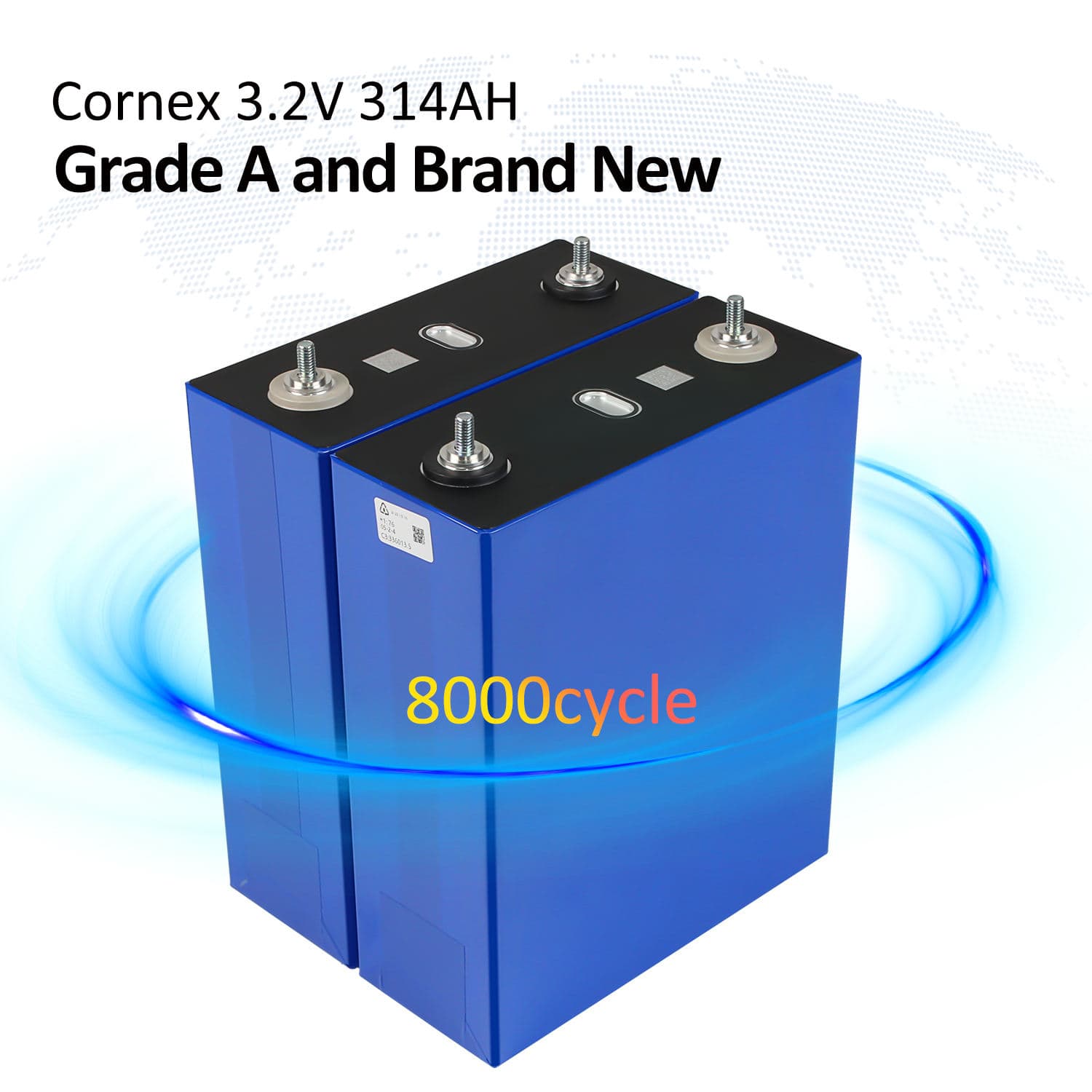

Cornex 314Ah 3.2V LiFePO4 Cell
Category: Cells
Pre-Order
Description
Cornex Prismatic Cells for Solar Energy Storage ESS 3.2V 314Ah LiFePO4 314 Battery 8000+ Cycles.
Select Warranty Period
Quantity
1
Total Price31,000 LKR
31,000 LKR × 1 unit · delivery quoted separately
Cornex PF173-314A 314Ah Prismatic LFP Cell
| Parameter | Specification |
|---|---|
| Model | PF173-314A |
| Cell Type / Chemistry | Prismatic LFP (Lithium Iron Phosphate) for ESS |
| Nominal Capacity | ≥ 314 Ah |
| Nominal Energy | ≥ 1004.8 Wh |
| Rated Power (1P) | 502.4 W |
| Operating Voltage Range | 2.5 V to 3.65 V (T > 0°C) / 2.0 V to 3.65 V (T ≤ 0°C) |
| Cycle Life | 8000 cycles to 70% SOH (or 6000 cycles to 80% SOH) @ 25°C, 1P |
| Weight | 5.65 kg ± 0.084 kg |
| Dimensions (L x W x H) | 174.0 mm ± 0.5 mm (Top Length) x 71.7 mm ± 0.5 mm x 207.2 mm ± 0.5 mm (Total Height) |
| Pole Center Distance | 123.0 mm ± 0.5 mm |
| Initial Internal Resistance | 0.17 mΩ ± 0.03 mΩ (at 1kHz, 20% SOC) |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5 V (T > 0°C) / 2.0 V (T ≤ 0°C) |
| Standard Charge / Discharge | 1P (502.4 W) |
| Max. Discharging Power | Up to 2P (1004.8 W) supported for rate charge/discharge |
| Charging Temperature | 0°C ~ 55°C |
| Discharging Temperature | -30°C ~ 55°C |
| Optimal Continuous Temp. | 15°C ~ 35°C |
