JK-BMS 8-24S Rated 100A Balancing 0.6A
Category: BMS
Pre-Order
Description
JIKONG JK-BD6A24S10PD Smart BMS. Supporting 8S- 24S LiFePO4 configurations, it features 100A continuous discharge, 0.6A active balancing, and Bluetooth monitoring. The perfect choice for building safe, reliable off-grid power solutions.
Quantity
1
Total Price11,000 LKR
11,000 LKR × 1 unit · delivery quoted separately

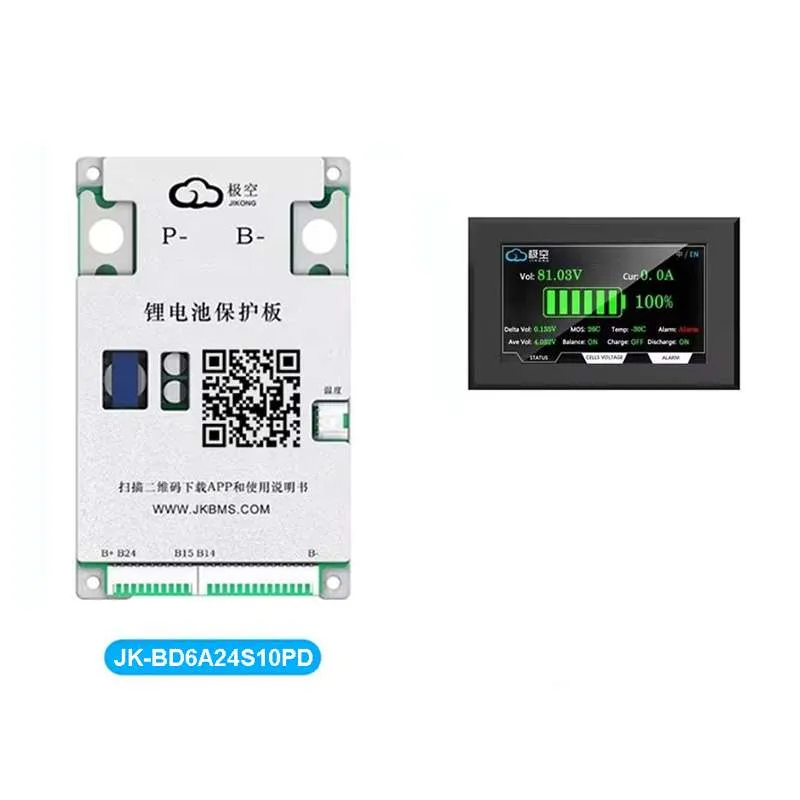

JK-BD6A24S10PD Smart BMS 8-24S Rated 100A Balancing 0.6A
| Parameter | Specification |
|---|---|
| Model | JK-BD6A24S-10PD |
| Product Type | Lithium Battery Active Balancing Protection Board (Smart BMS) |
| Supported Battery Chemistries | LiFePO4 (LFP), Li-ion (Ternary), Lithium Titanate (LTO) |
| Supported Series Count | 8S to 24S (LiFePO4) / 7S to 24S (Li-ion) / 14S to 24S (LTO) |
| Active Balancing Current | 0.6 A |
| Max. Continuous Charge Current | 100 A |
| Max. Continuous Discharge Current | 100 A |
| Max. Instantaneous Current | 200 A |
| Supply Voltage Range | 20 V ~ 100 V |
| Operating Power Consumption | < 800 mW |
| Max. Internal Loop Resistance | 0.74 mΩ |
| Communication & Interfaces | Bluetooth (Standard), UART (Standard), Display Port (Standard), RS485 / CAN / One-Wire (Optional) |
| Temperature Sensors (NTC) | 1 built-in, 2 external (standard) / up to 4 external (optional) |
| Operating Temperature Range | -30°C ~ 70°C |
| Additional Supported Features | Heating function (10 A, optional), Battery pack parallel function (optional), GPS via UART |
| Dimensions (L x W x H) | 136 mm x 103 mm x 13.6 mm |
| Weight | 318 g |
